Overview

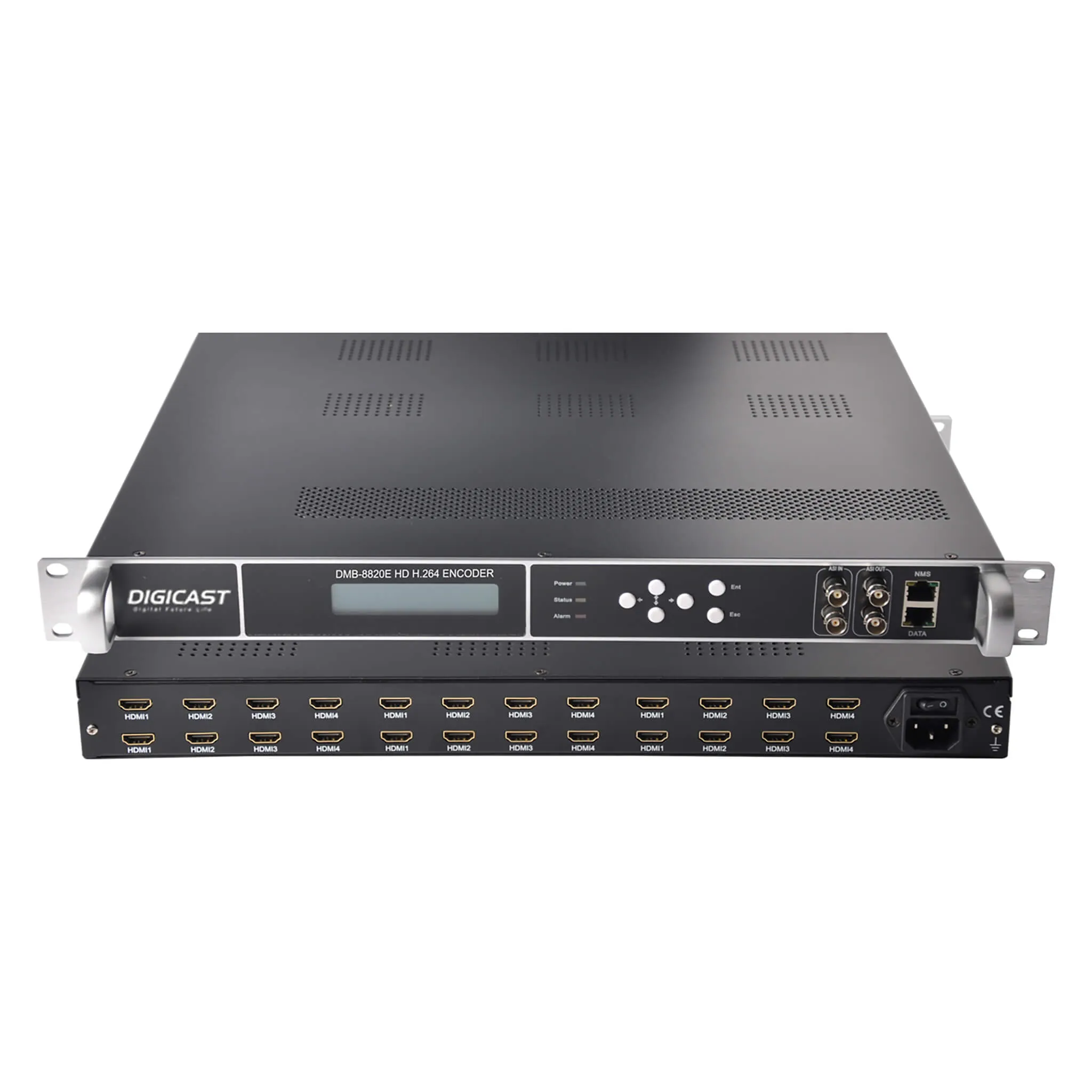

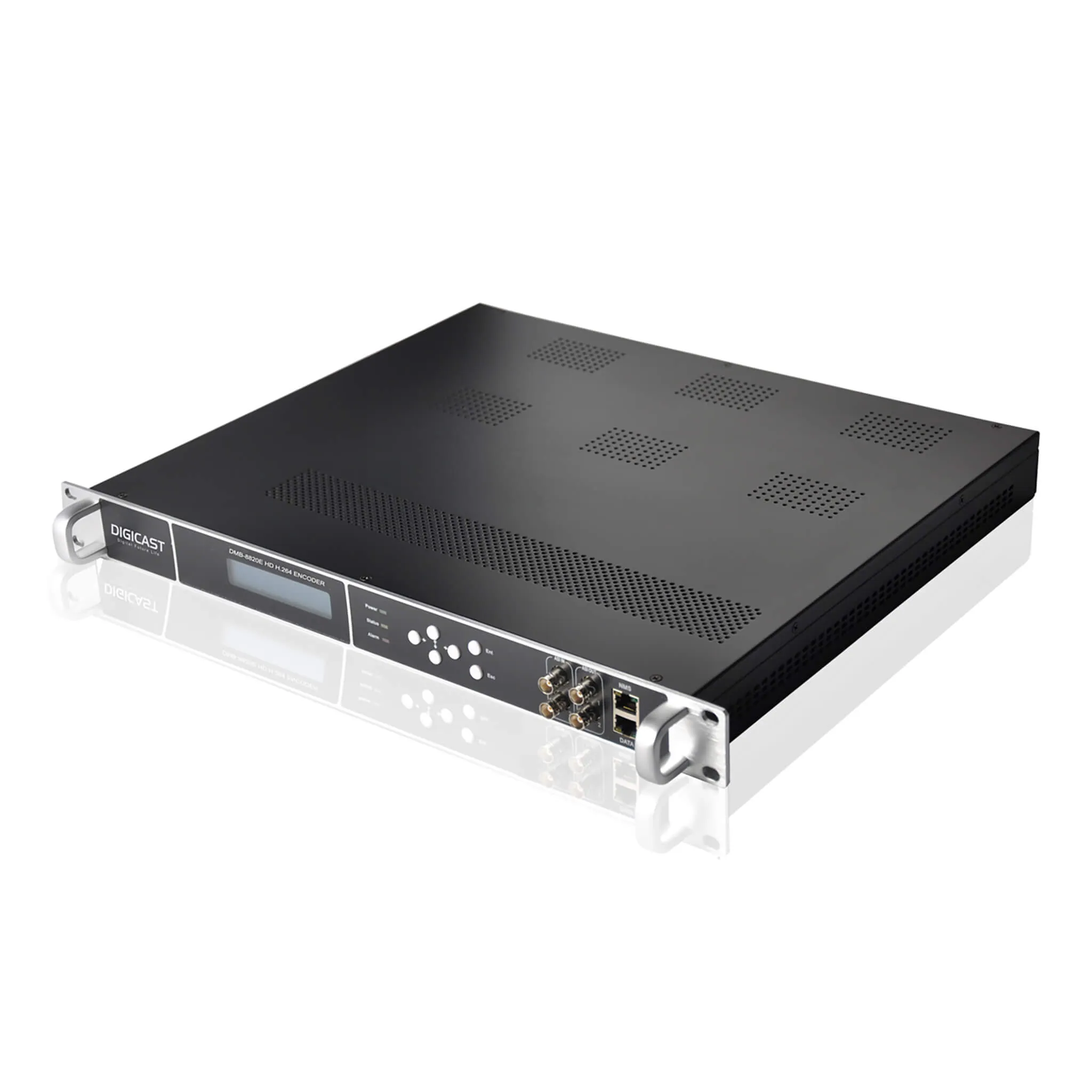

DMB-8820E Series Multi-Channel H.264 HD Encoder features high performance, ultra-low latency and low bit rates for DTV systems,
and adopts state-of-the-art compression technology(H.264/AVC) to achieve compression efficiency of the former MPEG-2 standard by
over two times, as well as excellent resolution. Audio encoding supports MPEG-1 Layer2.
The device provides input interfaces of 4/8/12/16/20/24 HDMI, and ASI output and 4/8/12/16/20/24*SPTS/1*MPTS TSoIP(UDP/IP) output
after loss-less compression processing.
The unique empty packets filtering capability enables the spectrum source to be saved for IPTV systems.
DMB-8820E has an external 1*ASI input, which can be multiplexed with local multi-programs to eliminate the needs of multiplexers,
and also simplify the network architecture for high reliability solutions. DMB-8820E Encoder is the preferred device for content
source encoding of DTV broadcasting system to address the ever-increasing demand for more premium viewing experiences.
and adopts state-of-the-art compression technology(H.264/AVC) to achieve compression efficiency of the former MPEG-2 standard by
over two times, as well as excellent resolution. Audio encoding supports MPEG-1 Layer2.
The device provides input interfaces of 4/8/12/16/20/24 HDMI, and ASI output and 4/8/12/16/20/24*SPTS/1*MPTS TSoIP(UDP/IP) output
after loss-less compression processing.
The unique empty packets filtering capability enables the spectrum source to be saved for IPTV systems.
DMB-8820E has an external 1*ASI input, which can be multiplexed with local multi-programs to eliminate the needs of multiplexers,
and also simplify the network architecture for high reliability solutions. DMB-8820E Encoder is the preferred device for content
source encoding of DTV broadcasting system to address the ever-increasing demand for more premium viewing experiences.
Features
Advanced video compression: H.264/AVC
Providing ASI and IP (UDP/RTP) output
Equipped with empty packets filtering of IP out

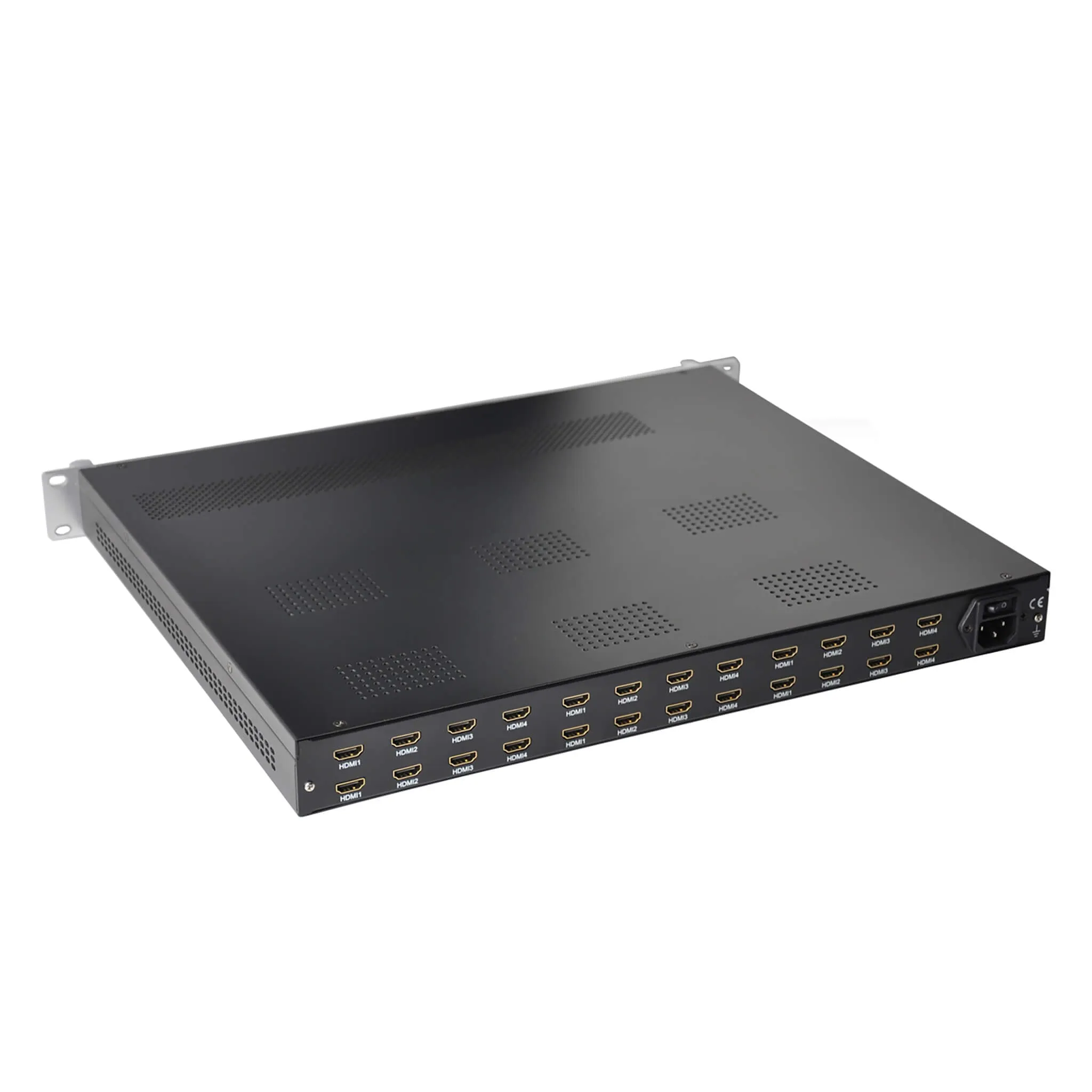

Input interface: 4/8/12/16/20/24 Channel HDMI, 4 HDMI ports per module
Up to 6 Modules in Back panel
Multi-pass Look Ahead CBR or VBR encoding
Built-in PCR capability
Support multiplexing with external 1*ASI in
Providing PSI/SI compilation and NIT, LCN insertion
Controlled by keyboard on front-panel, LCD display
Managed via Ethernet interfaceSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Providing ASI and IP (UDP/RTP) output
Equipped with empty packets filtering of IP out
Input interface: 4/8/12/16/20/24 Channel HDMI, 4 HDMI ports per module
Up to 6 Modules in Back panel
Multi-pass Look Ahead CBR or VBR encoding
Built-in PCR capability
Support multiplexing with external 1*ASI in
Providing PSI/SI compilation and NIT, LCN insertion
Controlled by keyboard on front-panel, LCD display
Managed via Ethernet interfaceSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
APPLICATONS
DIGICAST BRAND Economic Encoder by widely application for Hotels , Schools , Sport bars , Hospital , Churches , Event Streaming , Conference Live Streaming , Concert Event Streaming etc.
* IPTV & OTT system * Digital TV Broadcasting System
* Internet TV * Digital TV Programs Transmission
* Digital Signage Project * Hotel TV System
* Remote Video Conference * Head-end system of Digital TV branch network
* Video Monitoring * CATV Broadcasting system
* Live Streaming *Edge side of Digital TV backbone network
* IPTV & OTT system * Digital TV Broadcasting System
* Internet TV * Digital TV Programs Transmission
* Digital Signage Project * Hotel TV System
* Remote Video Conference * Head-end system of Digital TV branch network
* Video Monitoring * CATV Broadcasting system
* Live Streaming *Edge side of Digital TV backbone network
| Specification | |||
| Video Encoding | Video compression: H.264/AVC Video inputs: 4/8/12/16/20/24*HDMI The Input Resolution: 1920x1080@60P,1920x1080@60i, 1920x1080@50P,1920x1080@50i, 1280x720@60P,1280x720@50P 720x576@50i, 720x480@60i The Output Resolution: 1920×1080@30P,1920×1080@25P, 1280×720@30P,1280×720@25P, 720×576@25P,720×480@30P,(output without 60P output) Encoding: MPEG-4 AVC/H.264 Bit-rate : 1Mbps~13Mbps Rate Control : CBR,VBR GOP Structure : IPPPP (P Frame adjustment, without B Frame ) | ||
| Audio Encoding | Encoding : MPEG-1 Layer 2 Resolution : 24-bit Audio Gain : 0-255 Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps Sampling rate : 48KHz | ||
| ASI Inputs | Connector BNC: female, 75Ω Packet Length: 188 bytes Number of Input Ports : Dual separate ASI ports Signal Level : 200-800mVp-p Maximum bit-rate per port : ≤100Mbps | ||
| ASI Outputs | DVB-ASI 2 Separate ASI (Select from modulation Channels or MPTS channel) MPEG-2 TS over DVB-ASI (EN 50083-9) 75Ω, BNC, 188Bytes | ||
| IP Streaming Output | RJ45 Port 100/1000M GbE Port Simultaneous output with 4/8/12/16/20/24 *SPTS and 1*MPTS ,UDP/RTP Filter Null Packet Total Bitrate 1-200Mbps, (Should be More than Encoding bitrate) MPEG-2 TS over UDP/RTP, unicast, and multicast streaming Configurable packet size: (2-7)x188Bytes | ||
| Multiplexing Specifications | Maximum PID Remapping 180 input per channel PID remapping by automatically or manually Accurate PCR adjusting PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert | ||
| Control AND Monitoring | Interface: 1*RJ-45,100/1000M Base-T network interface Local operation: keyboard on front panel, LCD display Remote control: web-based management | ||
| Physical And Power | Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz Consumption: 60W Operating temperature: 0 ~ 45℃ Storage temperature: -20 ~ 80℃ Relative humidity: 10%~90%(non-condensing) Dimensions: 482mm(W)×380(D)mm×45mm(H)(19inch,1RU) Weight: 6 KGS | ||
